Cardan Shaft Balancing Machine

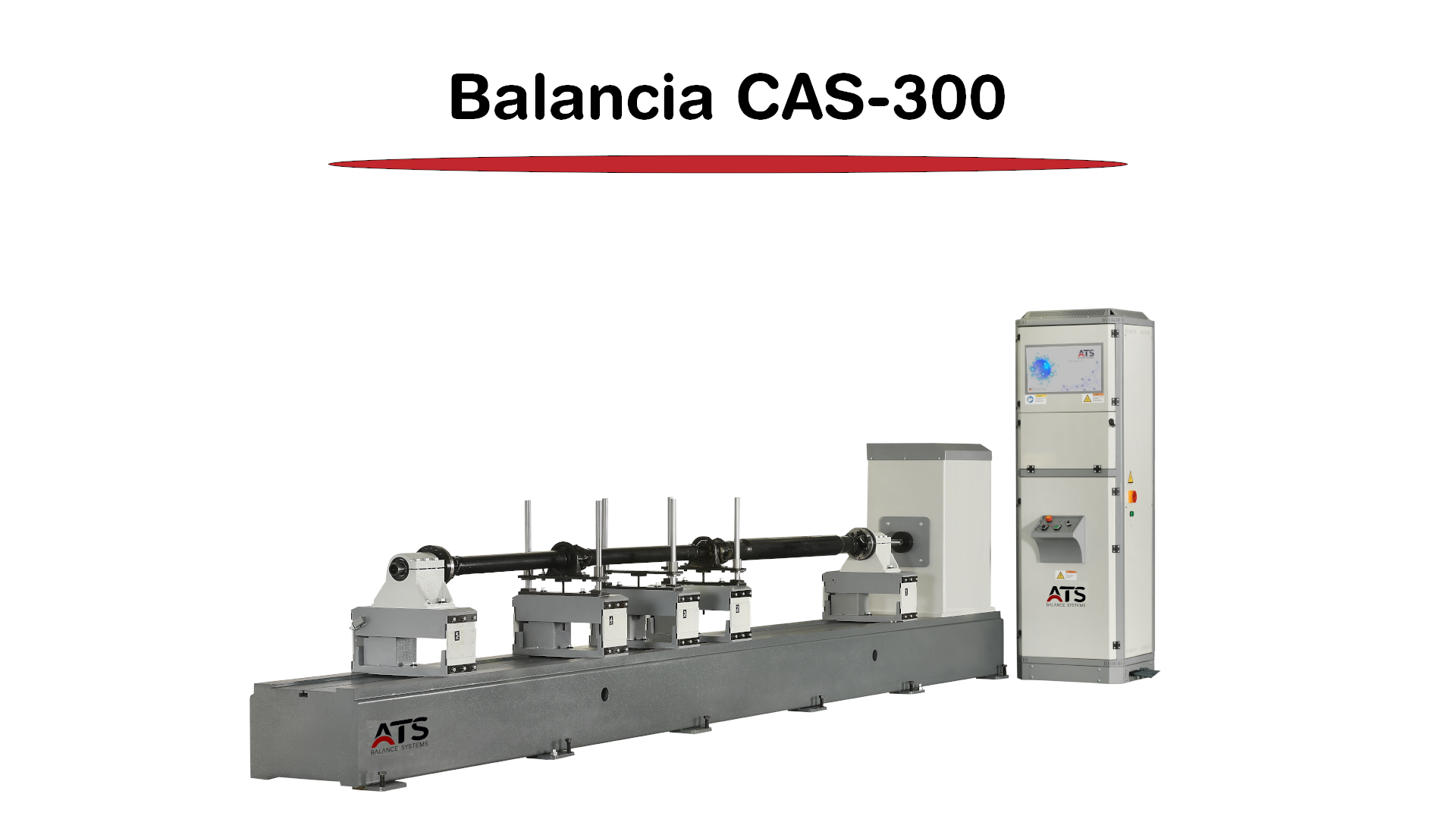

Balancia CAS-300
Balancia CAS-300 balances cardan shafts on a 5900 mm bed with four bearing pedestals, or five as an option. The shaft is driven at its flange by a cardan drive; measurement uses coil sensors and an encoder.
300 kgmax. rotor weight
9 – 140shaft diameter (mm)
5900 mmbed length
4 kWmotor power
Balancia CAS-300
Technical data
| Feature | Value |
|---|---|
| Workpiece | |
| Rotor weight | 20 – 300 kg |
| Journal diameter | 9 – 140 mm |
| Correction | 4 (standard) or 5 (optional) |
| Machine | |
| Bed length | 5900 mm |
| Bearing pedestals | 4 (standard) or 5 (optional) |
| Drive power | 4 kW |
| Drive type | Cardan (standard) |
| Balancing speed | 1500 rpm |
| Measurement and software | |
| Sensors | Coil sensors · Encoder |
| Software | iBalancer software · English (multilingual module optional) |
| Computer | AIO PC · Windows |
Values may vary with the options and the project.
Included in the quotation
- Installation, commissioning and operator training in Türkiye
- iBalancer measuring software and operator computer
- Warranty: 24 months in Türkiye, 12 months for export
Typical applications
- Cardan shaft
- Multi-section cardan shaft
Options
- 5th bearing pedestal
- Touchscreen AIO PC
- Control cabinet (Type A)
- Run-out sensor and software integration
- Additional run-out sensor (each)
- Multilingual interface module
- Control console (Type B)
- Safety fence
- Precision scale
- Report printer
