Turbo Balancing Machines
Voltana 15

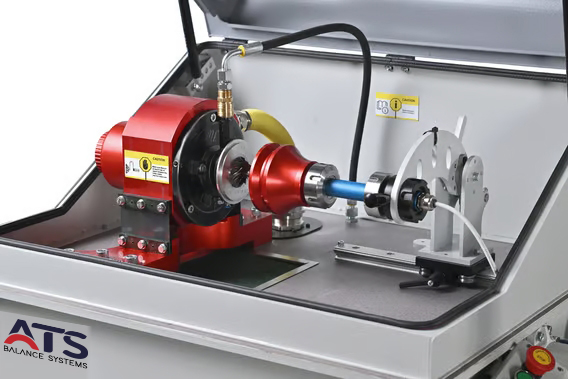

Voltana 15 balances turbo cartridges from Ø 28 to 65 mm at 30,000 – 250,000 rpm. The cartridge is driven by compressed air and oil, the turbo data come from the database in the software, and correction is done by grinding the turbo nut. A heavy-vehicle turbo set is available as an option.
250,000rpm maximum speed
Ø 28 – 65mm cartridge diameter
8 – 10bar air supply
Nutcorrection by grinding
Voltana 15
Technical data
| Feature | Value |
|---|---|
| Workpiece | |
| Cartridge diameter | 28 – 65 mm |
| Machine | |
| Balancing speed | 30,000 – 250,000 rpm |
| Drive type | Compressed air and oil |
| Measurement and software | |

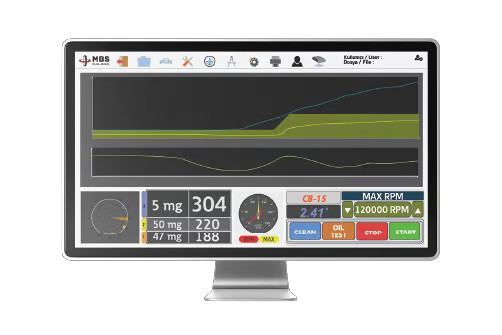

| Software | iBalancer Turbo software · Multilingual |
| Computer | AIO PC · Windows |
| Report | PDF and printing |
| Other | |
| Oil filter | Two filters |
| Air supply | 8 – 10 bar compressor (supplied by the customer) |
| Turbo connection | Nozzle and flange sets |
| Correction method | Grinding of the turbo nut |
| Turbo data | From the software database |
Values may vary with the options and the project.
Included in the quotation
- Installation and operator training in Türkiye
- Measuring software
- Warranty: 24 months in Türkiye, 12 months for export
Options
- Heavy-duty (truck and bus) turbo set
- Dremel hand-held grinder

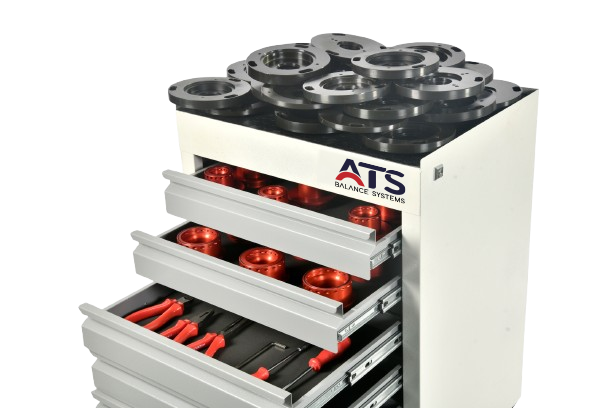

- Tool trolley with drawers
- Report printer
- Touchscreen AIO PC
- Sandblasting machine
- Air compressor
