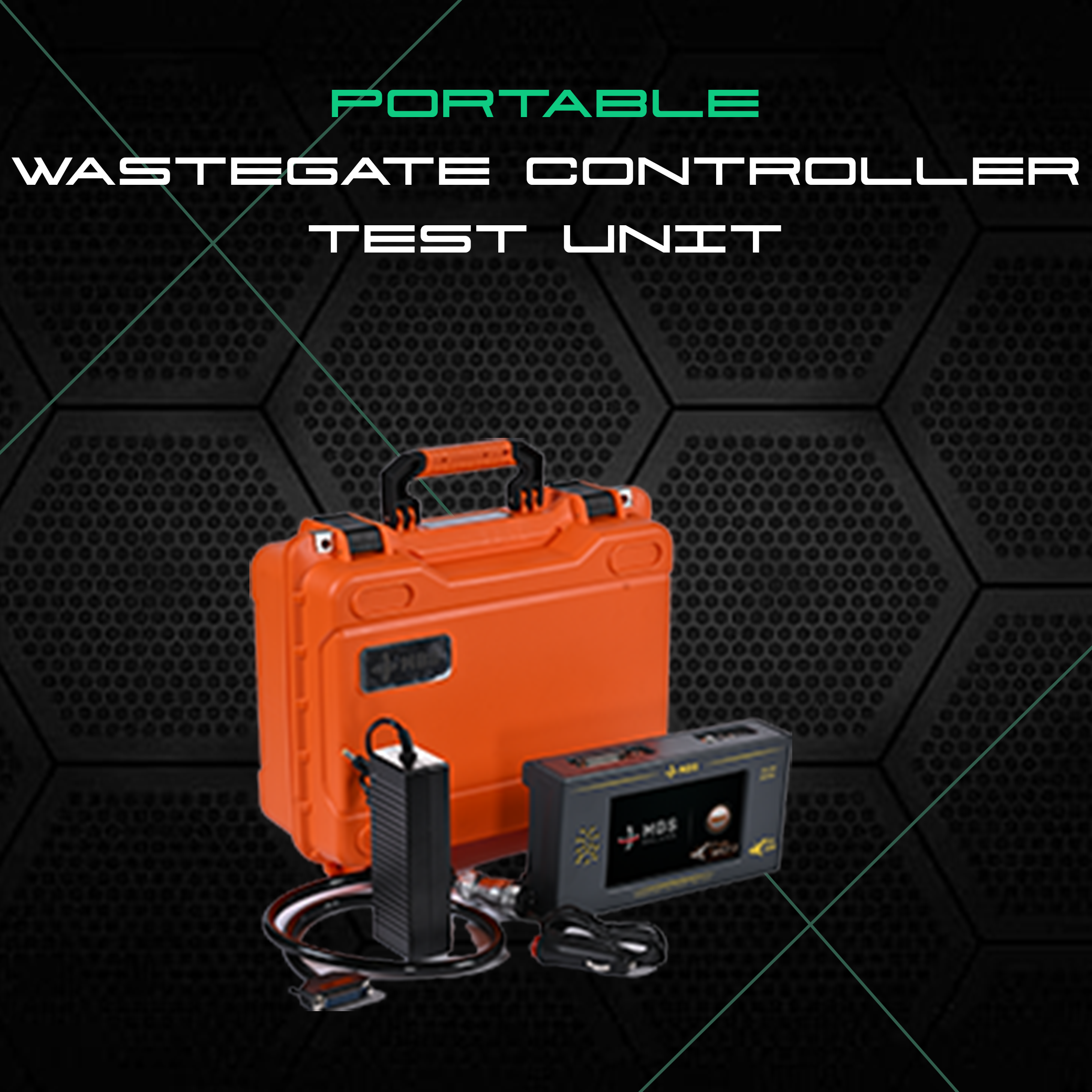

Portable Wastegate Controller Test Unit
ATS Balance WCT-X20
ATS Balance WCT-X20 is a portable unit for testing and adjusting turbo actuators in the workshop or at the vehicle. It has a 10.1-inch touch screen and works with Garrett, BorgWarner, Mahle, Hella REA and other actuators over PWM, CAN 2.0, FDCan, J1939 and SENT.
10.1″touch screen
5communication protocols
12 Vcables standard, 24 V optional
USB / SDsoftware update
ATS Balance WCT-X20
Technical data
| Feature | Value |
|---|---|
| Measurement and software | |
| Software | Turkish, English, German |
| Other | |
| Display | 10.1 inch full touch colour screen |
| Device type | Portable wastegate test device |
| Supported actuators | Siemens/Continental VDO, Garrett, Hella REA, Sonceboz, Mahle, BorgWarner |
| Communication protocols | PWM, CAN 2.0, FDCan, J1939, SENT |
| Functions | Minimum flow setting, end-stop setting, position sensor test, vacuum test, copying and backup |
| Connection cables | 12 V (standard) · 24 V (optional) |
| Power supply | AC adaptor or vehicle battery |
| Housing | Impact-resistant, water-resistant housing; carrying case |
| Software update | USB / SD card; wireless update optional |
Values may vary with the options and the project.
Included in the quotation
- Installation and operator training in Türkiye
- Measuring software
- Warranty: 24 months in Türkiye, 12 months for export
Options
- 24 V FX cable set (5 pcs)
- Sandblasting machine
- Air compressor
